Brief Introduction

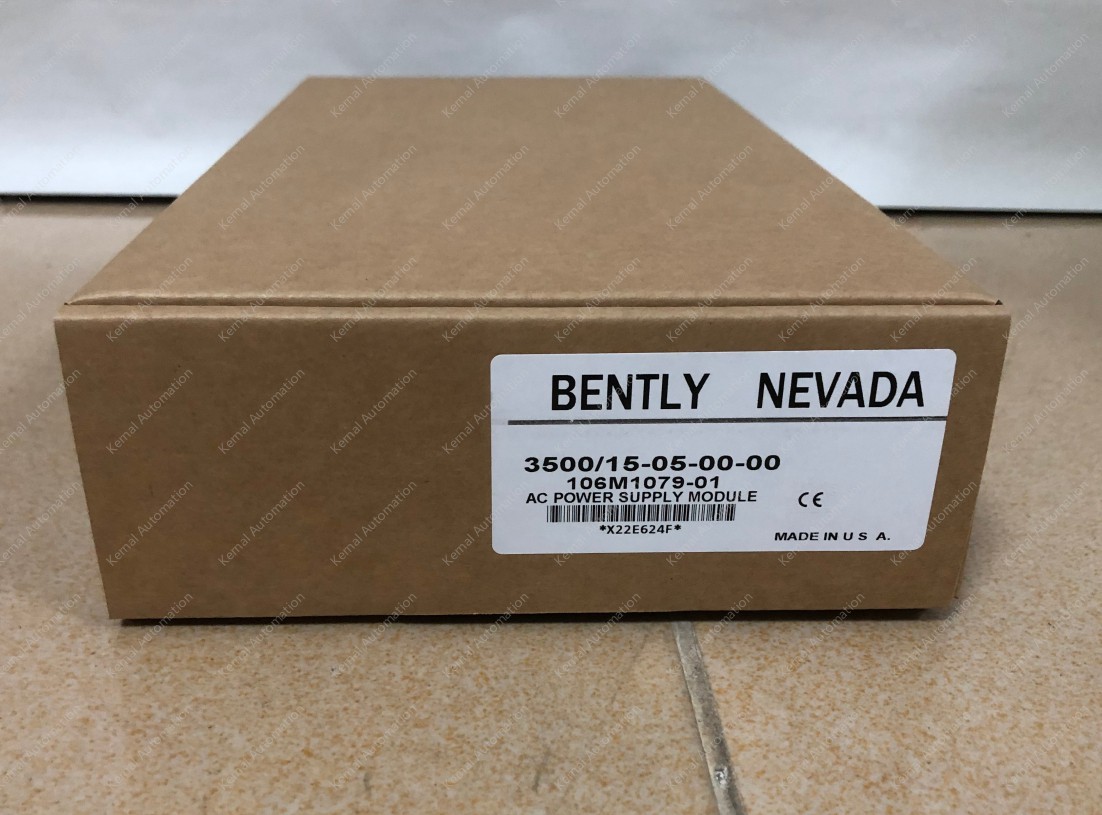

3500/15-05-00-00

Bently 3500/15-05-00-00 is a universal AC power supply, installed in the Bently 3500/05 frame power supply, used for steam turbines, compressors, fans, pumps, coal mills, gearboxes, motors and other large and medium-sized rotating machinery vibration monitoring, widely used in steel, electric power, metallurgy, chemical, petrochemical and many other industries. The Bently 3500/15 power module is a low-profile module and must be installed in the leftmost slot of the Bently 3500/05 frame. The 3500/05 frame can be fitted with one or two AC AC or DC DC power modules in any combination; Each power module can supply power to the entire frame individually. If two power modules are installed, they are one primary and one standby. When two power supplies are installed in a single rack, the lower slot is used as the main power supply, and the other slot is located in the upper slot as a backup power supply. As long as the standby power module is installed, plugging and unplugging the main power module will not interrupt the operation of the frame. The 3500 power module accepts a wide range of input voltages and converts them to the operating voltage acceptable to the 3500 module. The 3500 monitoring system provides 3 types of power modules: 1. AC power; 2. High voltage DC power supply; 3. Low-voltage DC power supply universal AC power supply and PIM (power input module) are not compatible with traditional 3500 AC power supply, high-voltage AC PIM and low-voltage AC PIM. High voltage and low voltage DC power supplies and PIM (Power Entry Module) are not compatible with the traditional 3500 high voltage and low voltage DC power supplies and PIM.
