1、 Model Code Analysis (16710-XX)
16710: Product Series → 3-core shielded, 22 AWG, stainless steel armored, vibration sensor specific connecting cable
35 (XX): Cable length → 35 feet (≈ 10.668 meters)
2、 Core technical parameters
1. Electrical and structural
Core specifications: 3-core twisted shielded wire, 22 AWG (0.5mm ²), single core independent shielding+total shielding, strong anti electromagnetic interference
Connector configuration: One end is a 3-socket plug (compatible with 330400/330500/9200/177230 sensors), and the other end is a terminal block (connected to the preamplifier/monitoring module)
Armor material: stainless steel armor, wear-resistant, anti extrusion, anti tensile, suitable for harsh industrial environments
Shielding structure: double-layer shielding (core wire+main cable), stable signal transmission, long distance (≤ 305 meters) attenuation ≤± 3dB
Characteristic impedance: Match Bentley vibration sensor standard impedance to ensure signal integrity
2. Machinery and Environment
Length: 35 feet (10.668 meters)
Outer diameter: Approximately 6.35mm (0.25 inches) after armor
Working temperature: -55 ℃~+121 ℃ (-67 ° F~+250 ° F)
Protection level: IP67, waterproof, dustproof, oil resistant, corrosion-resistant
Bending radius: minimum bending radius ≥ 8 times the outer diameter of the cable, convenient for on-site wiring
Weight: Approximately 1.4kg/35 feet
3. System adaptation
Compatible sensors: 330400 accelerometer, 330500/9200 speed sensor, 177230 vibration transmitter
Adaptation system: Bentley 3300/3500 monitoring system, 1900/65 monitor, PLC/DCS vibration channel
Transmission distance: Standard 35 feet, maximum up to 305 meters (1000 feet)
Typical application: Transmission of casing vibration/acceleration signals for rotating machinery such as steam turbines, compressors, fans, pumps, etc
USD
- USD
- CNY
- HKD
- EUR
English
- العربية
- čeština
- dansk
- Deutsch
- Ελληνικά
- English
- Español
- Français
- ic
- Italiano
- Netherlands
- norsk Språk
- język polski
- pt
- Português
- 中文
extension cables

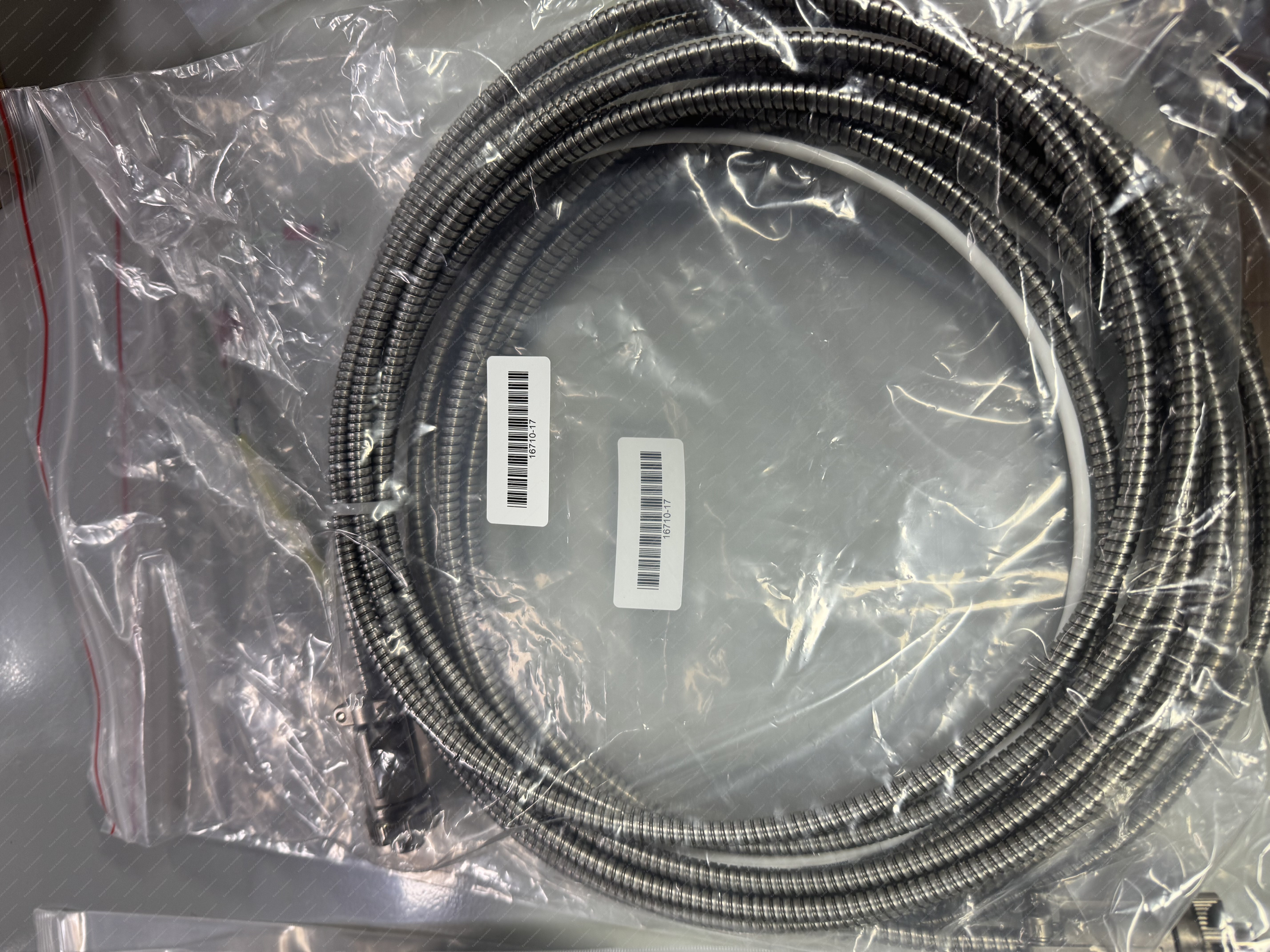

16710-35
16710-35
Subscribe to get pricesModel: 16710-35
Order No: BENTLY NEVADA 16710-35
SKU: 10000056158801
Condition: New Sealed Under Guarantee
Size: 31.00 cm，33.00 cm，6.00 cm
Weight: 0.30kg
Product Selection Engineer：ZhangWenBing
In Stock
Brief Introduction
16710-35
Bently Nevada vibration sensors monitor and measure the quality and integrity of their machine performance. By installing a Bently Nevad eddy current sensor, it is ideal for measuring rotor shaft position and vibration. The sensor portfolio helps you install and protect accessories and components for your most critical equipment, monitor unit vibration and protect equipment. Eddy current proximity sensors provide continuous condition monitoring information and trip monitoring machines when needed to support proactive maintenance procedures and machinery diagnostics. Bentley approach eddy current sensors are ideal for measuring rotor shaft position and vibration within the clearance of fluid film bearings and provide superior performance in harsh environments.Bently Approach Proximity Sensors Product Features:• Helps reduce costs, improve product quality and limit machine downtime.• Reduced Overall Rates – When you use proximity sensors as part of your plant-wide monitoring program, the costs associated with insurance, maintenance, and unplanned repairs will drop significantly• Increased Revenue - When you use our proximity sensors as part of your plant-wide monitoring program, revenue increases by increasing uptime and production quality.• Minimize unplanned downtime - You can convert unplanned and costly downtime into planned, manageable downtime.
