1、 Model Code Analysis (330102-A-B-C-D-E-F)
330102: Product Series → 3300 XL 8mm Eddy Current Probe (Standard Formal)
00 (A): Non threaded length → 0 inches (0mm)
60 (B): Total length of shell → 6.0 inches (≈ 152.4mm)
05 (C): Total length of probe (including cable) → 5.0 meters (≈ 16.4 feet)
02 (D): Type of connector/cable → Miniature ClickLoc coaxial connector, standard cable
05 (E): Certification → CSA/ATEX/IECEx multiple explosion-proof certification (applicable to hazardous areas)
2、 Core technical parameters
1. Measurement and Electrical
Measurement principle: Eddy current effect (non-contact)
Probe diameter: 8mm (3300 XL standard) Bently Nevada
Linear range: 2.0mm (80mils); Effective gap: 0.25-2.3mm (10-90mil), corresponding output: -1~-17Vdc
Sensitivity: 7.87V/mm (200mV/mil) (standard 8mm XL system)
Frequency response: 0-10kHz (-3dB), suitable for vibration/displacement/key phase measurement Bently Nevada
Temperature sensitivity: ≤ 0.05%/℃ (full temperature range)
System impedance: probe+cable+preamplifier, standard 5-meter system total capacitance of approximately 600pF
2. Machinery and Installation
Installation thread: 3/8-24 UNF (standard housing installation)
Probe end: PPS engineering plastic packaging, temperature resistant, wear-resistant, and impact resistant
Cable type: Armored shielded cable (anti electromagnetic interference, resistant to mechanical damage)
Connector: Miniature ClickLoc gold-plated coaxial connector (finger lock, anti loosening, corrosion-resistant)
Total length: 5.0 meters (probe+cable)
Weight: Approximately 0.3kg (5-meter cable)
3. Environment and Certification
Working temperature: -34 ℃~+177 ℃ (standard type); ETR type can reach * *+260 ℃**
Protection level: IP67 (waterproof and dustproof)
Explosion proof certification: CSA Division 2, ATEX Zone 0/2, IECEx (05 code)
Compliance Standard: API 670 (Fourth Edition) (Specification for Mechanical Protection Systems)
4. System adaptation
Supporting components: Need to use Bently Nevada with 330130 extension cable and 330180/330190 preamplifier
Monitoring systems: Bentley monitoring systems such as 3500, 3300, 1900/65, etc
Typical applications: Shaft displacement, radial vibration, key phase/speed measurement of steam turbines, compressors, pumps, gearboxes, motors Bently Nevada
USD
- USD
- CNY
- HKD
- EUR
English
- العربية
- čeština
- dansk
- Deutsch
- Ελληνικά
- English
- Español
- Français
- ic
- Italiano
- Netherlands
- norsk Språk
- język polski
- pt
- Português
- 中文
extension cables

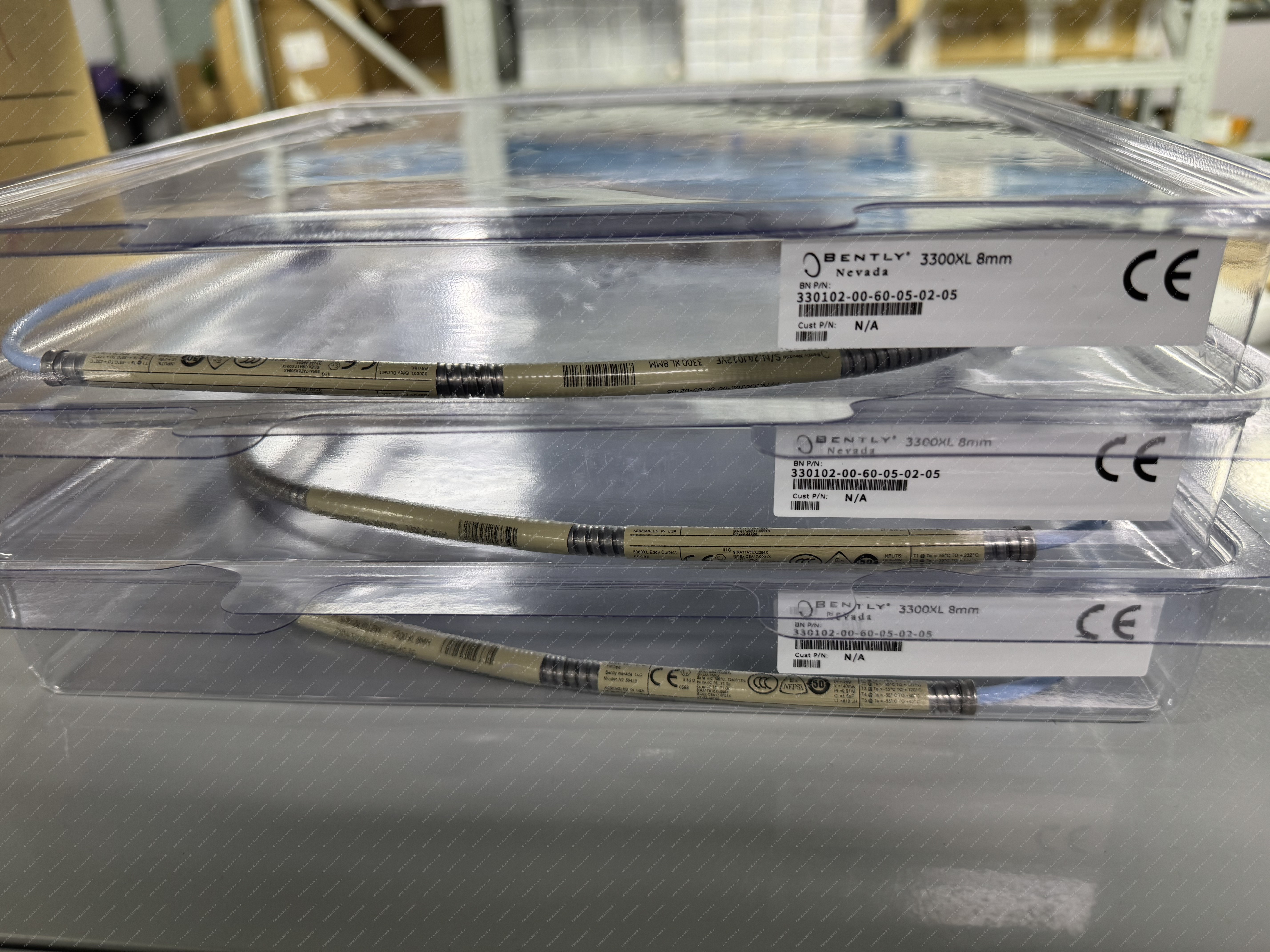

330102-00-60-05-02-05
330102-00-60-05-02-05
Subscribe to get pricesModel: 330102-00-60-05-02-05
Order No: BENTLY NEVADA 330102-00-60-05-02-05
SKU: 10000106404901
Condition: New Sealed Under Guarantee
Size: 35.00 cm，35.00 cm，7.00 cm
Weight: 0.30kg
Product Selection Engineer：ZhangWenBing
In Stock
Brief Introduction
330102-00-60-05-02-05
Disposition:• Cable length: 0.5 m (1.6 ft)• Connector protectors and cables: Micro coaxial ClickLoc connectors, standard cables• Agency Approvals: Multiple approvals The Bentley 3300 XL 8mm Probe 3/8-24 UNF Threaded Band Protector is a tool used for detection andMeasuring threads. High precision, high reliability, suitable for a variety of industriesApplication fields, such as petroleum, chemical, electric power, machinery and other fields. The probe is made of high-strength materials with excellent abrasion and corrosion resistance, andAble to work stably for a long time in harsh working environments. Its probe has a diameter of 8 mmThreads can be penetrated deep to provide more accurate measurements. In addition, the probe is equipped with armor that protects the probe from damage and increasesIts service life. The armor is made of high-quality materials and has excellent impact resistanceAbrasion resistance, which can effectively prevent damage to the probe such as accidental collision or drop. In summary, the Bentley 3300 XL 8mm Probe 3/8-24 UNF Threaded Band Protector is a high-performance,Highly reliable thread inspection tool for a wide range of industrial applications. Bentley 3300 XLThe 8mm probe 3/8-24 UNF Thread Belt Protector is a tool for detecting and measuring threads. It has:High precision and reliability, suitable for a variety of industrial applications, such as petroleum,Chemical, electric power, machinery and other fields.
