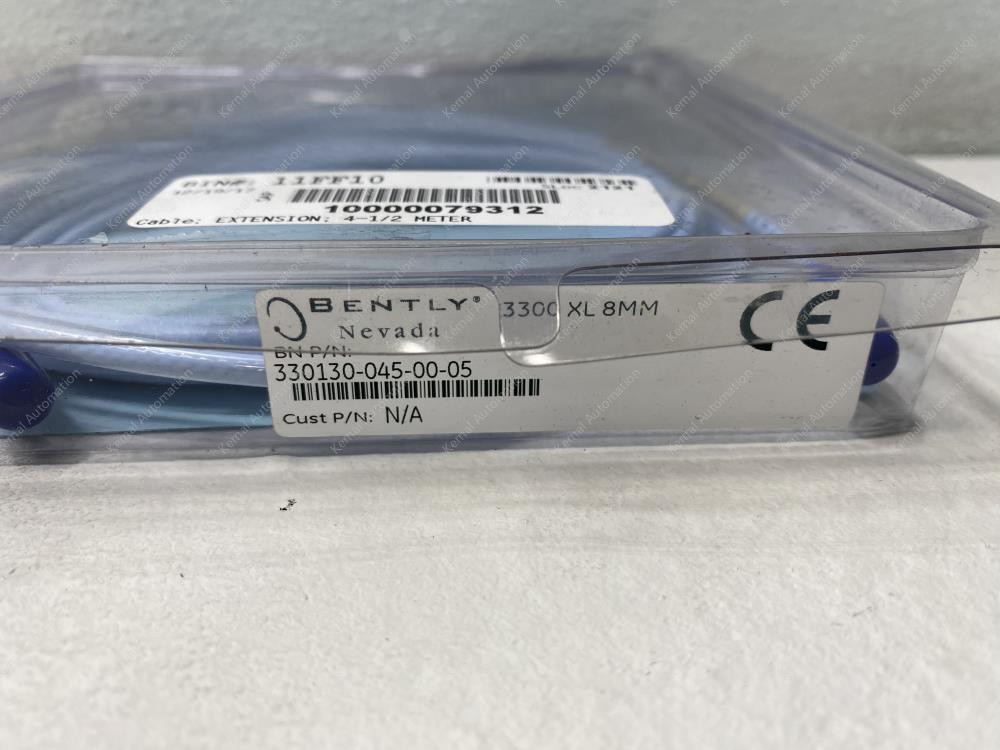

1、 Model code analysis (330130-XXX-XX-XX)
330130: Product Series, 3300 XL 8mm Eddy Current Sensor Extension Cable
045: Cable length, 4.5 meters (14.8 feet)
00: Cable/connector options, standard unarmored cable, no connector protector, ClickLoc miniature coaxial gold-plated connector
05: Certification option, multi license protocol certification (including ATEX/IECEx explosion-proof), suitable for hazardous areas
2、 Core technical parameters
1. Electrical and signal characteristics
Cable structure: 22 AWG triple coaxial shielding, FEP insulation, double-layer braided shielding, anti-interference attenuation>90dB, characteristic impedance 75 Ω
Connector configuration: ClickLoc miniature coaxial gold-plated connectors at both ends, quick locking, corrosion-resistant, and anti loosening, matched with 3300 XL probe and 330180 preamplifier
Capacitive characteristics: about 70pF/m, stable signal delay
Frequency response: 0-10kHz, covering the full frequency range measurement requirements of rotating machinery
Signal attenuation: ≤± 3dB (total system length ≤ 305 meters)
Rated voltage: 300V AC/DC
Insulation resistance: ≥ 100M Ω (500V DC)
2. Mechanical and environmental performance
Length: 4.5 meters
Outer diameter: approximately 6.0mm (unarmored)
Working temperature: -51 ℃~+177 ℃ (standard cable)
Protection level: IP67 for connectors and IP65 for cable bodies
Bending radius: ≥ 8 times the outer diameter (≥ 48mm)
Weight: Approximately 0.2kg/m, approximately 0.9kg for 4.5m
Material: PVC outer sheath, wear-resistant, anti-aging, oil resistant
3. System adaptation and application
Compatible probe: 330103/330105/330106 (3300 XL 8mm eddy current probe)
Compatible with Proximitors such as 330180-50/51/90, 330780, etc
Adaptation system: 3500/40M (shaft displacement), 3500/42M (shaft vibration), 3500/50 (speed), 3500/53 (overspeed) and other monitoring modules
Standard certification: Compliant with API 670, with ATEX/IECEx explosion-proof certification (option 05)
Typical application: Monitoring of rotating machinery shaft systems such as steam turbines, compressors, pumps, and fans, suitable for hazardous and explosion-proof areas, environments with good conditions and no mechanical extrusion risks on site
