1、 Model code analysis (330130-XXX-XX-XX)
table
Explanation of Model Segment Meaning

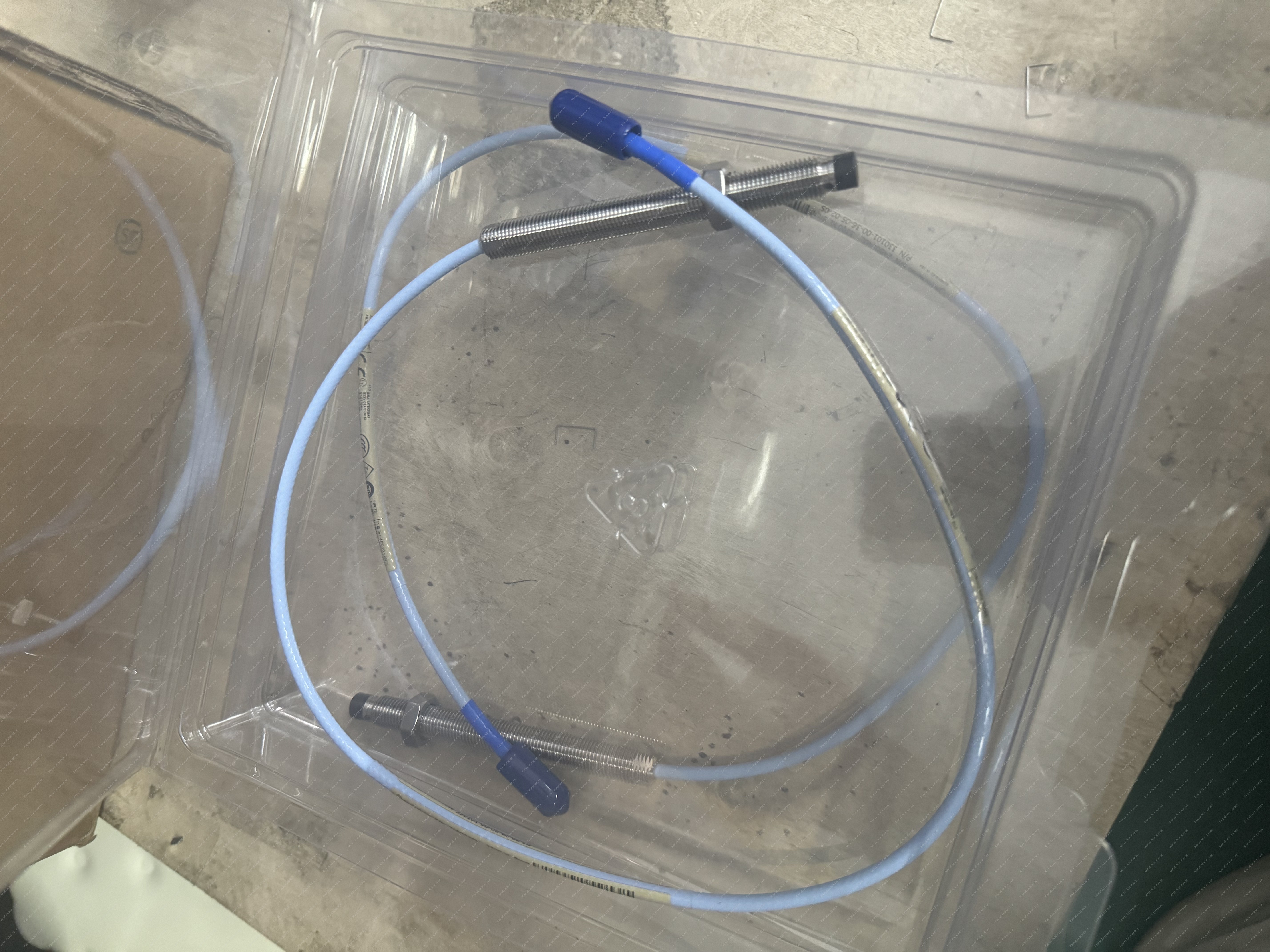

330130 Product Series 3300 XL 8mm Eddy Current Sensor Extension Cable
080 cable length 8.0 meters (26.2 feet), universal specification for medium to long distances
00 cable/connector options standard unarmored cable, equipped with ClickLoc miniature coaxial gold-plated connector, no connector protector
05 Certification Options Multi License Protocol Certification (including ATEX/IECEx Explosion proof), suitable for hazardous areas
2、 Core technical parameters
1. Electrical and signal characteristics
Cable structure: 22 AWG triple coaxial shielding, FEP insulation, double-layer braided shielding, anti-interference attenuation>90dB, characteristic impedance 75 Ω, ensuring signal fidelity in strong electromagnetic environments.
Connector configuration: ClickLoc miniature coaxial gold-plated connectors on both ends, quick finger locking, corrosion-resistant and anti loosening, perfectly matched with 3300 XL probe/330180 preamplifier.
Capacitance and delay: about 70pF/m, stable signal delay, no significant phase shift during long-distance transmission.
Frequency response: 0-10kHz, covering the full frequency range measurement requirements of rotating machinery vibration, displacement, and key phase.
Signal attenuation: ≤± 3dB (total system length ≤ 305 meters), ensuring long-distance transmission accuracy.
Electrical rating: rated voltage 300V AC/DC; Insulation resistance ≥ 100M Ω (500V DC), meeting industrial electrical safety requirements.
2. Mechanical and environmental performance
Physical parameters: Length 8.0 meters; Outer diameter approximately 6.0mm (unarmored, lightweight and easy to bend); The weight is about 0.9kg/8 meters (including packaging of about 3.0kg).
Temperature range: Operating temperature * * -51 ℃~+177 ℃ * * (-60 ° F~+351 ° F), suitable for extreme industrial environments.
Protection level: The joint is IP67 (waterproof and dustproof), the cable body is IP65, and it can withstand oil stains, moisture, and high-pressure water flushing.
Installation requirements: The minimum bending radius should be ≥ 8 times the outer diameter (≥ 48mm) to avoid excessive bending and damage to the cable.
Material and process: PVC outer sheath, wear-resistant, anti-aging, oil erosion resistant, gold-plated joint to improve corrosion resistance and connection reliability.
3. System adaptation and compliance
Compatible probe: 330103/330105/330106 (3300 XL 8mm eddy current probe).
Compatible with Proximitors such as 330180-50/51/90 and 330780.
Adaptation system: Monitoring modules such as 3500/25 (displacement), 3500/40M (shaft displacement), 3500/42M (shaft vibration), 3500/50 (speed), 3500/53 (overspeed), etc.
Industry compliance: Complies with API 670 standard for rotating machinery monitoring systems; 05 certification supports use in Zone 0/1 hazardous areas.
Typical applications: Key monitoring of rotating machinery shaft systems such as steam turbines, centrifugal compressors, pumps, fans, generators, etc., suitable for sites with high explosion-proof requirements and harsh environments.
